HIGHBAYS

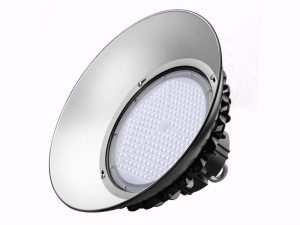

PHILIPS LED HIGH BAY LIGHT

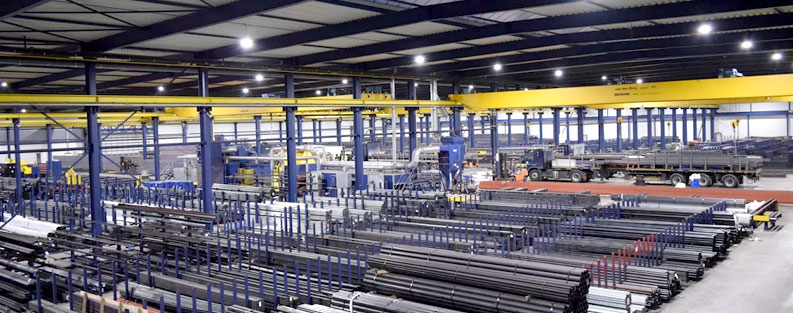

UFO LED High Bay Lighting series can be widely used in outdoor, indoor or outdoor lighting(Wet location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station , indoor stadiums and flower cultivating tents etc.
| Model | Power | Input Voltage | PF | Driver Efficiency | Luminous Flux | Color Temperature | CRI | Lighting Angle | LED Brightness Decay | Working Life | Working Temperature | Storage Temperature | Protection Level | Cable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHILIPS LED 100W HIGH BAY LIGHT | 100W | AC120-277V | 0.95 | 90% | 13400Lm | 4000K/5000K | Ra80 | 80° | 5%/6000 hrs | 50000 hrs | -30 - +45°C | -40 -+80°C | Wet Location/IP65 | 3 core,18AWG(0.5m) |
| PHILIPS LED 150W HIGH BAY LIGHT | 150W | AC120-277V | 0.95 | 90% | 18100Lm | 4000K/5000K | Ra80 | 80° | 5%/6000 hrs | 50000 hrs | -30 - +45°C | -40 -+80°C | Wet Location/IP65 | 3 core,18AWG(0.5m) |
| PHILIPS LED 200W HIGH BAY LIGHT | 200W | AC120-277V | 0.95 | 90% | 23100Lm | 4000K/5000K | Ra80 | 80° | 5%/6000 hrs | 50000 hrs | -30 - +45°C | -40 -+80°C | Wet Location/IP65 | 3 core,18AWG(0.5m) |

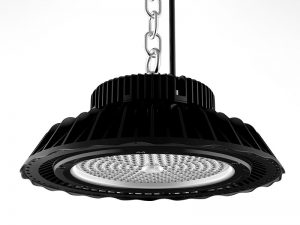

NICHIA LED HIGHBAY LIGHT
-Installation Method : Loop Hanging / Ceiling Mounting / Wall Mounting
-Intelligent Control : DALI Control / Microwave Sensor / Zigbee wireless control
-Fixture Color : Black / white
| Model | 0 | LED Type | LED QTY | System Efficacy | Luminous Flux | CCT | Beam Ange | CRI | System Efficiency | Power Supply | Input Voltage | Power Frequency | Output Voltage | Output Current | Power Efficiency | Power Factor | Total Harmonic Distortion | System Power Consumption | LED Power Consumption | Fixture Material | Ingress Protection | Luminare Net Weight | Life Span | Junction Temperature(Tj ) | Storage Temperature | Operating Temperature | Operating Humidity | Outlook Dimensions | Export Carton Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NICHIA LED 50W HIGHBAY LIGHT | 1 | Nichia SMD from Japan | 56pcs | 120LM/W(CCT=5000K) | 6000LM(CCT=5000K) | 4000K, 5000K | 90°, 120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 1.05A(Constant Currrent) | 93% | 0. 93 | 15% | 50±3W | 47±3W | Aluminum Alloy | IP65 | 2.27±0.3kg | 50000Hrs(Ta=30°C@L70) | 70°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 264×264×121.5mm | 310×310×235mm |
| NICHIA LED 70W HIGHBAY LIGHT | 2 | Nichia SMD from Japan | 84pcs | 120LM/W(CCT=5000K) | 8400LM(CCT=5000K) | 4000K, 5000K | 90°, 120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 1.45A(Constant Currrent) | 93% | 0. 93 | 15% | 70±3W | 66±3W | Aluminum Alloy | IP65 | 3.02±0.3kg | 50000Hrs(Ta=30°C@L70) | 70°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 264×264×172.5mm | 310×310×235mm |
| NICHIA LED 90W HIGHBAY LIGHT | 3 | Nichia SMD from Japan | 105pcs | 120LM/W(CCT=5000K) | 10800LM(CCT=5000K) | 4000K, 5000K | 90°, 120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 1.86A(Constant Currrent) | 93% | 0. 93 | 15% | 90±3W | 84±3W | Aluminum Alloy | IP65 | 3.02±0.3kg | 50000Hrs(Ta=30°C@L70) | 70°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 264×264×172.5mm | 310×310×235mm |
| NICHIA LED 100W HIGHBAY LIGHT | 4 | Nichia SMD from Japan | 112pcs | 130 lm/W(CCT=5000K) | 13000 lm(CCT=5000K) | 4000K, 5000K | 50° , 90° ,120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 2.2A(Constant Currrent) | 93% | 0. 93 | 15% | 100±3W | 93±3W | Aluminum Alloy | IP65 | 6.7±0.3kg | 50000Hrs(Ta=30°C@L70) | 70°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 383×193×383mm | 440×260×440mm |
| NICHIA LED 120W HIGHBAY LIGHT | 5 | Nichia SMD from Japan | 140pcs | 130 lm/W(CCT=5000K) | 15600 lm(CCT=5000K) | 4000K, 5000K | 50° , 90° ,120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 2.8A(Constant Currrent) | 93% | 0. 93 | 15% | 120±3W | 112±3W | Aluminum Alloy | IP65 | 6.7±0.3kg | 50000Hrs(Ta=30°C@L70) | 75°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 383×193×383mm | 440×260×440mm |
| NICHIA LED 150W HIGHBAY LIGHT | 6 | Nichia SMD from Japan | 189pcs | 130 lm/W(CCT=5000K) | 19500 lm(CCT=5000K) | 4000K, 5000K | 50° , 90° ,120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 3.4A(Constant Currrent) | 93% | 0. 93 | 15% | 150±3W | 140±3W | Aluminum Alloy | IP65 | 6.7±0.3kg | 50000Hrs(Ta=30°C@L70) | 75°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 383×193×383mm | 440×260×440mm |
| NICHIA LED 200W HIGHBAY LIGHT | 7 | Nichia SMD from Japan | 252pcs | 130 lm/W(CCT=5000K) | 26000 lm(CCT=5000K) | 4000K, 5000K | 50° , 90° ,120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 4.6A(Constant Currrent) | 93% | 0. 93 | 15% | 200±3W | 186±3W | Aluminum Alloy | IP65 | 7.3±0.3kg | 50000Hrs(Ta=30°C@L70) | 85°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 383×203.5×383mm | 440×260×440mm |
| NICHIA LED 240W HIGHBAY LIGHT | 8 | Nichia SMD from Japan | 434pcs | 127LM/W(CCT=5000K) | 30000LM(CCT=5000K) | 4000K, 5000K | 50° , 90° ,120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 5.2A(Constant Currrent) | 93% | 0. 93 | 15% | 240±3W | 220±3W | Aluminum Alloy | IP65 | 7.3±0.3kg | 50000Hrs(Ta=30°C@L70) | 85°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 383×203.5×383mm | 440×260×440mm |
| NICHIA LED 300W HIGHBAY LIGHT | 9 | Nichia SMD from Japan | 532pcs | 130 lm/W(CCT=5000K) | 40000 lm(CCT=5000K) | 4000K, 5000K | 50° , 90° ,120° | Ra73 | 90% | Meanwell | AC100~277V | 47~63Hz | DC28.8~48V | 6.4A(Constant Currrent) | 93% | 0. 93 | 15% | 300±5W | 276±5W | Aluminum Alloy | IP65 | 9±0.3kg | 50000Hrs(Ta=30°C@L70) | 90°C(Ta=30°C) | -40 +70 C | -30~+50°C | 15~90%RH | 383×257×383mm | 440×260×450mm |
