PANELS


Newtronics Developments designs high quality Commercial LED lighting systems to offer the customer an effective tool to illuminate each product in a specific way, whether it be a garment, food or jewelry, to make it more attractive, as well as being able to offer solutions of Ambient lighting that favors comfort, stimulate the purchase and improve the experience of sale in a better way.
Newtronics Developments offers specific solutions in Commercial LED lighting systems to help you create a safe, attractive and nice shopping environment. Also will improve the profitability of your business, saving energy and maintenance.

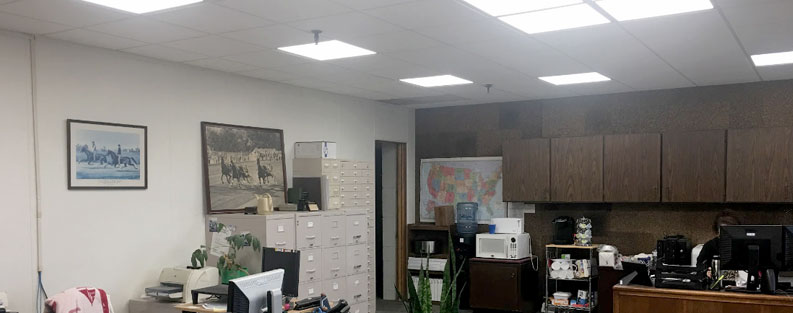

PANELS has the exact same size to replace your complete fixtures/troffers to make a fast replacement to do high savings and improve the quality of light of your installation at the same time. Please select from the list below which is the most suitable model for your installation.
Model | Wattage(W) | Input Voltage(V) | PF | Output Voltage/Current | LED Type | CCT | Luminous Flux | Light efficiency | CRI | Angle(°) | Dimmable Function | Warranty | Operating Ambient | Storage Ambient | Material | Certifications | Net Weight | Dimension | IP Code |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

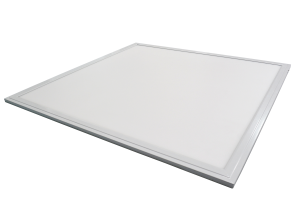

2X2FT PANEL LIGHT | 40 | 100-277VAC | 0.9 | DC 27-42V/1000mA | Epistar SMD4014/SMD2835 :192pcs | 3800-4500K | 4000lm | 100lm/W | 80 | 120° | Dimmable for option | 5 years | -20°C to +45°C,10-80%Rh | -30°C to +65°C,10-80%Rh | Aluminum+ PMMA | UL,cUL,DLC,FCC | 4.5Kgs | 603x603mm | IP40 |
2X4FT PANEL LIGHT | 50 | 100-277VAC | 0.9 | DC27-42/1300mA | Epistar SMD4014/SMD2835: 384PCS | 5000K | 5000lm | 100lm/W | 80 | 120° | Dimmable for option | 5 years | -20°C to +45°C,10-80%Rh | -30°C to +65°C,10-80%Rh | Aluminum+ PMMA | UL,cUL,DLC,FCC | 8.2Kgs | 600x1210mm | IP40 |
